1 of 20

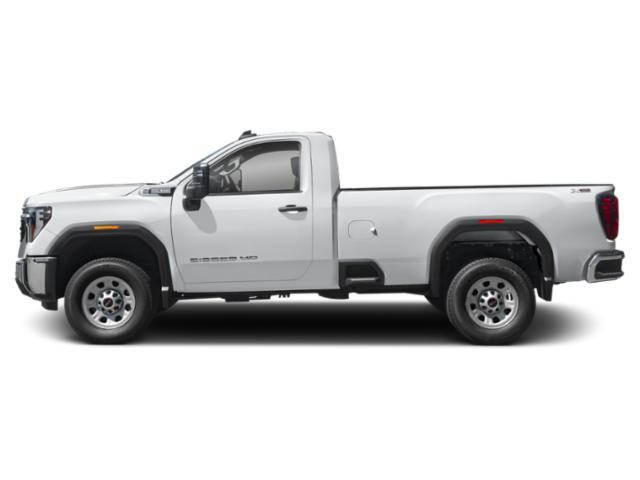

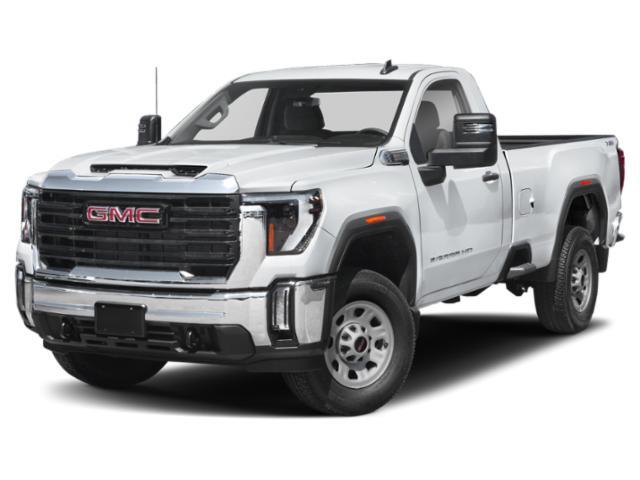

2WD Reg Cab 142" Pro

$N/A MSRP

Gasoline, Diesel

Rear-Wheel Drive

401 - 470 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Turbocharged Diesel V8 Gas V8

Displacement

6.6L/- TBD -

Fuel System

Direct Injection

Horsepower

470 hp @ 2800 rpm 401 hp @ 5200 rpm

Torque

975 ft-lb @ 1600 rpm 464 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

6,577 - 9,072 kg

Wt Distributing Hitch - Max Tongue Wt.

658 - 907 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,509 - 14,515 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,127 - 4,082 kg

Maximum Trailering Capacity

9,072 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

Transmission, 10-Speed automatic Cooling, auxiliary external transmission oil cooler

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Included

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Not Available

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Included

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Included

Automatic Headlights

Not Available

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

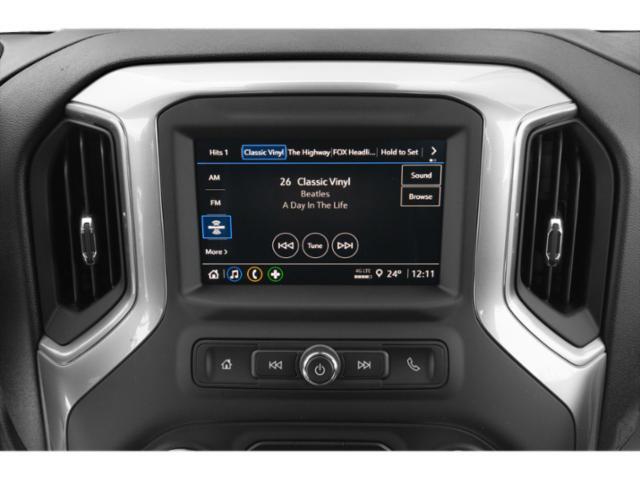

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Not Available

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Included

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Not Available

Variable Speed Intermittent Wipers

Not Available

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

2 - 3

Front Head Room

1,095 mm

Front Leg Room

1,131 mm

Front Shoulder Room

1,678 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,595 mm

Length, Overall

6,002 mm

Width, Max w/o mirrors

2,076 - 2,457 mm

Height, Overall

2,038 - 2,056 mm

Min Ground Clearance

N/A

Base Curb Weight

N/A

Front Tire Size

LT235/80R17 LT275/70R18

Rear Tire Size

LT235/80R17 LT275/70R18

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

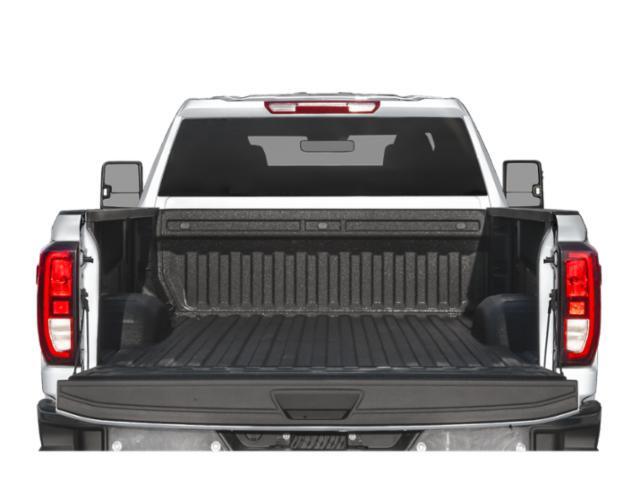

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Not Available

Wheels-Locks

Not Available

2 of 20

2WD Double Cab 162" Pro

$N/A MSRP

Gasoline, Diesel, Flex Fuel

Rear-Wheel Drive

401 - 470 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Turbocharged Diesel V8 Gas/Ethanol V8 Gas V8

Displacement

6.6L/- TBD -

Fuel System

Direct Injection

Horsepower

470 hp @ 2800 rpm 401 hp @ 5200 rpm

Torque

975 ft-lb @ 1600 rpm 464 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,257 - 9,072 kg

Wt Distributing Hitch - Max Tongue Wt.

726 - 907 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,301 - 14,324 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,075 - 3,581 kg

Maximum Trailering Capacity

9,072 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

Transmission, 10-Speed automatic Cooling, auxiliary external transmission oil cooler

Fuel

Gasoline Diesel Flex Fuel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Included

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Not Available

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Included

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Included

Automatic Headlights

Not Available

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Not Available

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Included

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Not Available

Variable Speed Intermittent Wipers

Not Available

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,093 mm

Front Leg Room

1,131 mm

Front Shoulder Room

1,677 mm

Rear Head Room

1,013 mm

Rear Leg Room

895 mm

Rear Shoulder Room

1,648 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,127 mm

Length, Overall

6,534 mm

Width, Max w/o mirrors

2,079 - 2,457 mm

Height, Overall

2,037 - 2,054 mm

Min Ground Clearance

N/A

Base Curb Weight

N/A

Front Tire Size

LT235/80R17 LT275/70R18

Rear Tire Size

LT235/80R17 LT275/70R18

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Not Available

Wheels-Locks

Not Available

3 of 20

2WD Crew Cab 159" Pro

$N/A MSRP

Gasoline, Diesel, Flex Fuel

Rear-Wheel Drive

401 - 470 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Turbocharged Diesel V8 Gas/Ethanol V8 Gas V8

Displacement

6.6L/- TBD -

Fuel System

Direct Injection

Horsepower

470 hp @ 2800 rpm 401 hp @ 5200 rpm

Torque

975 ft-lb @ 1600 rpm 464 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,257 - 9,072 kg

Wt Distributing Hitch - Max Tongue Wt.

726 - 907 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,459 - 9,934 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,115 - 2,483 kg

Maximum Trailering Capacity

9,072 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

Transmission, 10-Speed automatic Cooling, auxiliary external transmission oil cooler

Fuel

Gasoline Diesel Flex Fuel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Included

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Not Available

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Included

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Included

Automatic Headlights

Not Available

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Not Available

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Included

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Not Available

Variable Speed Intermittent Wipers

Not Available

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,093 mm

Front Leg Room

1,131 mm

Front Shoulder Room

1,677 mm

Rear Head Room

1,019 mm

Rear Leg Room

1,102 mm

Rear Shoulder Room

1,659 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,037 mm

Length, Overall

6,369 mm

Width, Max w/o mirrors

2,079 - 2,454 mm

Height, Overall

2,054 mm

Min Ground Clearance

N/A

Base Curb Weight

N/A

Front Tire Size

LT275/70R18

Rear Tire Size

LT275/70R18

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Not Available

Wheels-Locks

Not Available

4 of 20

2WD Crew Cab 172" Pro

$N/A MSRP

Gasoline, Diesel, Flex Fuel

Rear-Wheel Drive

401 - 470 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Turbocharged Diesel V8 Gas/Ethanol V8 Gas V8

Displacement

6.6L/- TBD -

Fuel System

Direct Injection

Horsepower

470 hp @ 2800 rpm 401 hp @ 5200 rpm

Torque

975 ft-lb @ 1600 rpm 464 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,257 - 9,072 kg

Wt Distributing Hitch - Max Tongue Wt.

726 - 907 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,274 - 14,265 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,068 - 3,566 kg

Maximum Trailering Capacity

9,072 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

Transmission, 10-Speed automatic Cooling, auxiliary external transmission oil cooler

Fuel

Gasoline Diesel Flex Fuel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Included

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Not Available

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Included

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Included

Automatic Headlights

Not Available

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Not Available

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Included

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Not Available

Variable Speed Intermittent Wipers

Not Available

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,093 mm

Front Leg Room

1,131 mm

Front Shoulder Room

1,677 mm

Rear Head Room

1,019 mm

Rear Leg Room

1,102 mm

Rear Shoulder Room

1,659 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,369 mm

Length, Overall

6,776 mm

Width, Max w/o mirrors

2,079 - 2,454 mm

Height, Overall

2,033 - 2,049 mm

Min Ground Clearance

N/A

Base Curb Weight

N/A

Front Tire Size

LT235/80R17 LT275/70R18

Rear Tire Size

LT235/80R17 LT275/70R18

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Not Available

Wheels-Locks

Not Available

5 of 20

4WD Reg Cab 142" Pro

$N/A MSRP

Gasoline, Diesel

Four-Wheel Drive

401 - 470 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Turbocharged Diesel V8 Gas V8

Displacement

6.6L/- TBD -

Fuel System

Direct Injection

Horsepower

470 hp @ 2800 rpm 401 hp @ 5200 rpm

Torque

975 ft-lb @ 1600 rpm 464 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

6,577 - 9,072 kg

Wt Distributing Hitch - Max Tongue Wt.

658 - 907 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,337 - 14,288 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,084 - 3,572 kg

Maximum Trailering Capacity

9,072 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Transmission, 10-Speed automatic Cooling, auxiliary external transmission oil cooler

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Included

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Not Available

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Included

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Included

Automatic Headlights

Not Available

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Not Available

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Included

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Not Available

Variable Speed Intermittent Wipers

Not Available

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

2 - 3

Front Head Room

1,095 mm

Front Leg Room

1,131 mm

Front Shoulder Room

1,678 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,595 mm

Length, Overall

6,002 mm

Width, Max w/o mirrors

2,076 - 2,457 mm

Height, Overall

2,038 - 2,056 mm

Min Ground Clearance

N/A

Base Curb Weight

N/A

Front Tire Size

LT235/80R17 LT275/70R18

Rear Tire Size

LT235/80R17 LT275/70R18

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Not Available

Wheels-Locks

Not Available

6 of 20

4WD Reg Cab 142" SLE

$N/A MSRP

Gasoline, Diesel

Four-Wheel Drive

401 - 470 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Turbocharged Diesel V8 Gas V8

Displacement

6.6L/- TBD -

Fuel System

Direct Injection

Horsepower

470 hp @ 2800 rpm 401 hp @ 5200 rpm

Torque

975 ft-lb @ 1600 rpm 464 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

6,577 - 9,072 kg

Wt Distributing Hitch - Max Tongue Wt.

658 - 907 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,337 - 14,288 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,084 - 3,572 kg

Maximum Trailering Capacity

9,072 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Transmission, 10-Speed automatic Cooling, auxiliary external transmission oil cooler

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Included

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Not Available

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Included

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Included

Automatic Headlights

Not Available

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Included

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Not Available

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

2 - 3

Front Head Room

1,095 mm

Front Leg Room

1,131 mm

Front Shoulder Room

1,678 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,595 mm

Length, Overall

6,002 mm

Width, Max w/o mirrors

2,076 - 2,457 mm

Height, Overall

2,038 - 2,056 mm

Min Ground Clearance

N/A

Base Curb Weight

N/A

Front Tire Size

LT235/80R17 LT275/65R20 LT275/70R18

Rear Tire Size

LT235/80R17 LT275/65R20 LT275/70R18

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Not Available

Wheels-Locks

Not Available

7 of 20

4WD Double Cab 162" Pro

$N/A MSRP

Gasoline, Diesel, Flex Fuel

Four-Wheel Drive

401 - 470 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Turbocharged Diesel V8 Gas/Ethanol V8 Gas V8

Displacement

6.6L/- TBD -

Fuel System

Direct Injection

Horsepower

470 hp @ 2800 rpm 401 hp @ 5200 rpm

Torque

975 ft-lb @ 1600 rpm 464 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,257 - 9,072 kg

Wt Distributing Hitch - Max Tongue Wt.

726 - 907 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,160 - 14,188 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,040 - 3,547 kg

Maximum Trailering Capacity

9,072 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Transmission, 10-Speed automatic Cooling, auxiliary external transmission oil cooler

Fuel

Gasoline Diesel Flex Fuel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Included

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Not Available

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Included

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Included

Automatic Headlights

Not Available

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Not Available

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Included

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Not Available

Variable Speed Intermittent Wipers

Not Available

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,093 mm

Front Leg Room

1,131 mm

Front Shoulder Room

1,677 mm

Rear Head Room

1,013 mm

Rear Leg Room

895 mm

Rear Shoulder Room

1,648 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,127 mm

Length, Overall

6,534 mm

Width, Max w/o mirrors

2,079 - 2,457 mm

Height, Overall

2,037 - 2,054 mm

Min Ground Clearance

N/A

Base Curb Weight

N/A

Front Tire Size

LT235/80R17 LT275/70R18

Rear Tire Size

LT235/80R17 LT275/70R18

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Not Available

Wheels-Locks

Not Available

8 of 20

4WD Double Cab 162" SLE

$N/A MSRP

Gasoline, Diesel

Four-Wheel Drive

401 - 470 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Turbocharged Diesel V8 Gas V8

Displacement

6.6L/- TBD -

Fuel System

Direct Injection

Horsepower

470 hp @ 2800 rpm 401 hp @ 5200 rpm

Torque

975 ft-lb @ 1600 rpm 464 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,257 - 9,072 kg

Wt Distributing Hitch - Max Tongue Wt.

726 - 907 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,160 - 14,188 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,040 - 3,547 kg

Maximum Trailering Capacity

9,072 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Transmission, 10-Speed automatic Cooling, auxiliary external transmission oil cooler

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Included

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Not Available

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Included

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Included

Automatic Headlights

Not Available

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Optional

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Included

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Not Available

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Included

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,093 mm

Front Leg Room

1,131 mm

Front Shoulder Room

1,677 mm

Rear Head Room

1,013 mm

Rear Leg Room

895 mm

Rear Shoulder Room

1,648 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,127 mm

Length, Overall

6,534 mm

Width, Max w/o mirrors

2,079 - 2,457 mm

Height, Overall

2,037 - 2,054 mm

Min Ground Clearance

N/A

Base Curb Weight

N/A

Front Tire Size

LT235/80R17 LT275/65R20 LT275/70R18

Rear Tire Size

LT235/80R17 LT275/65R20 LT275/70R18

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Not Available

Wheels-Locks

Not Available

9 of 20

4WD Crew Cab 159" Pro

$N/A MSRP

Gasoline, Diesel, Flex Fuel

Four-Wheel Drive

401 - 470 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Turbocharged Diesel V8 Gas/Ethanol V8 Gas V8

Displacement

6.6L/- TBD -

Fuel System

Direct Injection

Horsepower

470 hp @ 2800 rpm 401 hp @ 5200 rpm

Torque

975 ft-lb @ 1600 rpm 464 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,257 - 9,072 kg

Wt Distributing Hitch - Max Tongue Wt.

726 - 907 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,301 - 9,798 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,075 - 2,449 kg

Maximum Trailering Capacity

9,072 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Transmission, 10-Speed automatic Cooling, auxiliary external transmission oil cooler

Fuel

Gasoline Diesel Flex Fuel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Included

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Not Available

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Included

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Included

Automatic Headlights

Not Available

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Not Available

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Included

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Not Available

Variable Speed Intermittent Wipers

Not Available

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,093 mm

Front Leg Room

1,131 mm

Front Shoulder Room

1,677 mm

Rear Head Room

1,019 mm

Rear Leg Room

1,102 mm

Rear Shoulder Room

1,659 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,037 mm

Length, Overall

6,369 mm

Width, Max w/o mirrors

2,079 - 2,454 mm

Height, Overall

2,054 mm

Min Ground Clearance

N/A

Base Curb Weight

N/A

Front Tire Size

LT275/70R18

Rear Tire Size

LT275/70R18

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Not Available

Wheels-Locks

Not Available

10 of 20

4WD Crew Cab 159" SLE

$N/A MSRP

Gasoline, Diesel

Four-Wheel Drive

401 - 470 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Turbocharged Diesel V8 Gas V8

Displacement

6.6L/- TBD -

Fuel System

Direct Injection

Horsepower

470 hp @ 2800 rpm 401 hp @ 5200 rpm

Torque

975 ft-lb @ 1600 rpm 464 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,257 - 9,072 kg

Wt Distributing Hitch - Max Tongue Wt.

726 - 907 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,301 - 9,798 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,075 - 2,449 kg

Maximum Trailering Capacity

9,072 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Transmission, 10-Speed automatic Cooling, auxiliary external transmission oil cooler

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Included

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Not Available

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Included

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Included

Automatic Headlights

Not Available

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Optional

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Included

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Not Available

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Included

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,093 mm

Front Leg Room

1,131 mm

Front Shoulder Room

1,677 mm

Rear Head Room

1,019 mm

Rear Leg Room

1,102 mm

Rear Shoulder Room

1,659 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,037 mm

Length, Overall

6,369 mm

Width, Max w/o mirrors

2,079 - 2,454 mm

Height, Overall

2,054 mm

Min Ground Clearance

N/A

Base Curb Weight

N/A

Front Tire Size

LT275/65R20 LT275/70R18

Rear Tire Size

LT275/65R20 LT275/70R18

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Not Available

Wheels-Locks

Not Available

11 of 20

4WD Crew Cab 159" SLT

$N/A MSRP

Gasoline, Diesel

Four-Wheel Drive

401 - 470 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Turbocharged Diesel V8 Gas V8

Displacement

6.6L/- TBD -

Fuel System

Direct Injection

Horsepower

470 hp @ 2800 rpm 401 hp @ 5200 rpm

Torque

975 ft-lb @ 1600 rpm 464 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,257 - 9,072 kg

Wt Distributing Hitch - Max Tongue Wt.

726 - 907 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,301 - 9,798 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,075 - 2,449 kg

Maximum Trailering Capacity

9,072 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Transmission, 10-Speed automatic Cooling, auxiliary external transmission oil cooler

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Included

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Not Available

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Included

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Included

Automatic Headlights

Not Available

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Optional

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Included

Cooled Front Seat(s)

Included

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Included

Seat-Massage

Not Available

Heated Steering Wheel

Included

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Included

Seat Memory

Included

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Included

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Included

Universal Garage Door Opener

Included

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,093 mm

Front Leg Room

1,131 mm

Front Shoulder Room

1,677 mm

Rear Head Room

1,019 mm

Rear Leg Room

1,102 mm

Rear Shoulder Room

1,659 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,037 mm

Length, Overall

6,369 mm

Width, Max w/o mirrors

2,079 - 2,454 mm

Height, Overall

2,054 mm

Min Ground Clearance

N/A

Base Curb Weight

N/A

Front Tire Size

LT275/65R20 LT275/70R18

Rear Tire Size

LT275/65R20 LT275/70R18

Sun/Moon Roof

Included

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Not Available

Wheels-Locks

Not Available

12 of 20

4WD Crew Cab 159" AT4

$N/A MSRP

Gasoline, Diesel

Four-Wheel Drive

401 - 470 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Turbocharged Diesel V8 Gas V8

Displacement

6.6L/- TBD -

Fuel System

Direct Injection

Horsepower

470 hp @ 2800 rpm 401 hp @ 5200 rpm

Torque

975 ft-lb @ 1600 rpm 464 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,257 - 9,072 kg

Wt Distributing Hitch - Max Tongue Wt.

726 - 907 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,119 - 9,662 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,030 - 2,415 kg

Maximum Trailering Capacity

9,072 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Transmission, 10-Speed automatic Cooling, auxiliary external transmission oil cooler

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Included

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Not Available

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Included

Heads-Up Display

Included

Lighting

Daytime Running Lights

Included

Automatic Headlights

Not Available

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Included

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Included

Cooled Front Seat(s)

Included

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Included

Seat-Massage

Not Available

Heated Steering Wheel

Included

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Included

Seat Memory

Included

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Included

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Included

Universal Garage Door Opener

Included

Running Boards/Side Steps

Included

Power Retractable Running Boards

Included

Interior

Passenger Capacity

Front Head Room

1,093 mm

Front Leg Room

1,131 mm

Front Shoulder Room

1,677 mm

Rear Head Room

1,019 mm

Rear Leg Room

1,102 mm

Rear Shoulder Room

1,659 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,037 mm

Length, Overall

6,369 mm

Width, Max w/o mirrors

2,079 - 2,454 mm

Height, Overall

2,062 mm

Min Ground Clearance

N/A

Base Curb Weight

N/A

Front Tire Size

LT275/65R20 LT275/70R18

Rear Tire Size

LT275/65R20 LT275/70R18

Sun/Moon Roof

Included

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Not Available

Wheels-Locks

Not Available

13 of 20

4WD Crew Cab 159" Denali

$N/A MSRP

Gasoline, Diesel

Four-Wheel Drive

401 - 470 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Turbocharged Diesel V8 Gas V8

Displacement

6.6L/- TBD -

Fuel System

Direct Injection

Horsepower

470 hp @ 2800 rpm 401 hp @ 5200 rpm

Torque

975 ft-lb @ 1600 rpm 464 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,257 - 9,072 kg

Wt Distributing Hitch - Max Tongue Wt.

726 - 907 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,119 - 9,616 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,030 - 2,404 kg

Maximum Trailering Capacity

9,072 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Transmission, 10-Speed automatic Cooling, auxiliary external transmission oil cooler

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Included

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Not Available

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Included

Heads-Up Display

Included

Lighting

Daytime Running Lights

Included

Automatic Headlights

Not Available

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Included

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Included

Cooled Front Seat(s)

Included

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Included

Seat-Massage

Not Available

Heated Steering Wheel

Included

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Included

Seat Memory

Included

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Included

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Included

Universal Garage Door Opener

Included

Running Boards/Side Steps

Included

Power Retractable Running Boards

Included

Interior

Passenger Capacity

Front Head Room

1,093 mm

Front Leg Room

1,131 mm

Front Shoulder Room

1,677 mm

Rear Head Room

1,019 mm

Rear Leg Room

1,102 mm

Rear Shoulder Room

1,659 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,037 mm

Length, Overall

6,369 mm

Width, Max w/o mirrors

2,079 - 2,454 mm

Height, Overall

2,054 mm

Min Ground Clearance

N/A

Base Curb Weight

N/A

Front Tire Size

LT275/65R20

Rear Tire Size

LT275/65R20

Sun/Moon Roof

Included

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Not Available

Wheels-Locks

Not Available

14 of 20

4WD Crew Cab 159" Denali Ultimate

$N/A MSRP

Diesel

Four-Wheel Drive

470 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Turbocharged Diesel V8

Displacement

6.6L/- TBD -

Fuel System

Direct Injection

Horsepower

470 hp @ 2800 rpm

Torque

975 ft-lb @ 1600 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

9,072 kg

Wt Distributing Hitch - Max Tongue Wt.

907 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,571 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,393 kg

Maximum Trailering Capacity

9,072 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Transmission, 10-speed automatic Cooling, auxiliary external transmission oil cooler

Fuel

Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Included

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Not Available

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Included

Heads-Up Display

Included

Lighting

Daytime Running Lights

Included

Automatic Headlights

Not Available

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Included

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Included

Cooled Front Seat(s)

Included

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Included

Seat-Massage

Included

Heated Steering Wheel

Included

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Included

Seat Memory

Included

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Included

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Included

Universal Garage Door Opener

Included

Running Boards/Side Steps

Included

Power Retractable Running Boards

Included

Interior

Passenger Capacity

Front Head Room

1,093 mm

Front Leg Room

1,131 mm

Front Shoulder Room

1,677 mm

Rear Head Room

1,019 mm

Rear Leg Room

1,102 mm

Rear Shoulder Room

1,659 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,037 mm

Length, Overall

6,369 mm

Width, Max w/o mirrors

2,079 - 2,454 mm

Height, Overall

2,062 mm

Min Ground Clearance

N/A

Base Curb Weight

N/A

Front Tire Size

LT275/70R18

Rear Tire Size

LT275/70R18

Sun/Moon Roof

Included

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Not Available

Wheels-Locks

Not Available

15 of 20

4WD Crew Cab 172" Pro

$N/A MSRP

Gasoline, Diesel, Flex Fuel

Four-Wheel Drive

401 - 470 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Turbocharged Diesel V8 Gas/Ethanol V8 Gas V8

Displacement

6.6L/- TBD -

Fuel System

Direct Injection

Horsepower

470 hp @ 2800 rpm 401 hp @ 5200 rpm

Torque

975 ft-lb @ 1600 rpm 464 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,257 - 9,072 kg

Wt Distributing Hitch - Max Tongue Wt.

726 - 907 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,269 - 14,261 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,067 - 3,565 kg

Maximum Trailering Capacity

9,072 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Transmission, 10-Speed automatic Cooling, auxiliary external transmission oil cooler

Fuel

Gasoline Diesel Flex Fuel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Included

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Not Available

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Included

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Included

Automatic Headlights

Not Available

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Not Available

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Included

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Not Available

Variable Speed Intermittent Wipers

Not Available

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,093 mm

Front Leg Room

1,131 mm

Front Shoulder Room

1,677 mm

Rear Head Room

1,019 mm

Rear Leg Room

1,102 mm

Rear Shoulder Room

1,659 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,369 mm

Length, Overall

6,776 mm

Width, Max w/o mirrors

2,079 - 2,454 mm

Height, Overall

2,033 - 2,049 mm

Min Ground Clearance

N/A

Base Curb Weight

N/A

Front Tire Size

LT235/80R17 LT275/70R18

Rear Tire Size

LT235/80R17 LT275/70R18

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Not Available

Wheels-Locks

Not Available

16 of 20

4WD Crew Cab 172" SLE

$N/A MSRP

Gasoline, Diesel

Four-Wheel Drive

401 - 470 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Turbocharged Diesel V8 Gas V8

Displacement

6.6L/- TBD -

Fuel System

Direct Injection

Horsepower

470 hp @ 2800 rpm 401 hp @ 5200 rpm

Torque

975 ft-lb @ 1600 rpm 464 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,257 - 9,072 kg

Wt Distributing Hitch - Max Tongue Wt.

726 - 907 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,269 - 14,261 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,067 - 3,565 kg

Maximum Trailering Capacity

9,072 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Transmission, 10-Speed automatic Cooling, auxiliary external transmission oil cooler

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Included

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Not Available

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Included

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Included

Automatic Headlights

Not Available

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Optional

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Included

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Not Available

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Included

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,093 mm

Front Leg Room

1,131 mm

Front Shoulder Room

1,677 mm

Rear Head Room

1,019 mm

Rear Leg Room

1,102 mm

Rear Shoulder Room

1,659 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,369 mm

Length, Overall

6,776 mm

Width, Max w/o mirrors

2,079 - 2,454 mm

Height, Overall

2,033 - 2,049 mm

Min Ground Clearance

N/A

Base Curb Weight

N/A

Front Tire Size

LT235/80R17 LT275/65R20 LT275/70R18

Rear Tire Size

LT235/80R17 LT275/65R20 LT275/70R18

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Not Available

Wheels-Locks

Not Available

17 of 20

4WD Crew Cab 172" SLT

$N/A MSRP

Gasoline, Diesel

Four-Wheel Drive

401 - 470 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Turbocharged Diesel V8 Gas V8

Displacement

6.6L/- TBD -

Fuel System

Direct Injection

Horsepower

470 hp @ 2800 rpm 401 hp @ 5200 rpm

Torque

975 ft-lb @ 1600 rpm 464 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,257 - 9,072 kg

Wt Distributing Hitch - Max Tongue Wt.

726 - 907 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,269 - 14,261 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,067 - 3,565 kg

Maximum Trailering Capacity

9,072 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Transmission, 10-Speed automatic Cooling, auxiliary external transmission oil cooler

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Included

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Not Available

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Included

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Included

Automatic Headlights

Not Available

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Optional

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Included

Cooled Front Seat(s)

Included

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Included

Seat-Massage

Not Available

Heated Steering Wheel

Included

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Included

Seat Memory

Included

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Included

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Included

Universal Garage Door Opener

Included

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,093 mm

Front Leg Room

1,131 mm

Front Shoulder Room

1,677 mm

Rear Head Room

1,019 mm

Rear Leg Room

1,102 mm

Rear Shoulder Room

1,659 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,369 mm

Length, Overall

6,776 mm

Width, Max w/o mirrors

2,079 - 2,454 mm

Height, Overall

2,033 - 2,049 mm

Min Ground Clearance

N/A

Base Curb Weight

N/A

Front Tire Size

LT235/80R17 LT275/65R20 LT275/70R18

Rear Tire Size

LT235/80R17 LT275/65R20 LT275/70R18

Sun/Moon Roof

Included

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Not Available

Wheels-Locks

Not Available

18 of 20

4WD Crew Cab 172" AT4

$N/A MSRP

Gasoline, Diesel

Four-Wheel Drive

401 - 470 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Turbocharged Diesel V8 Gas V8

Displacement

6.6L/- TBD -

Fuel System

Direct Injection

Horsepower

470 hp @ 2800 rpm 401 hp @ 5200 rpm

Torque

975 ft-lb @ 1600 rpm 464 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,257 - 9,072 kg

Wt Distributing Hitch - Max Tongue Wt.

726 - 907 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,074 - 9,616 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,018 - 2,404 kg

Maximum Trailering Capacity

9,072 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Transmission, 10-Speed automatic Cooling, auxiliary external transmission oil cooler

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Included

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Not Available

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Included

Heads-Up Display

Included

Lighting

Daytime Running Lights

Included

Automatic Headlights

Not Available

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Included

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Included

Cooled Front Seat(s)

Included

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Included

Seat-Massage

Not Available

Heated Steering Wheel

Included

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Included

Seat Memory

Included

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Included

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Included

Universal Garage Door Opener

Included

Running Boards/Side Steps

Included

Power Retractable Running Boards

Included

Interior

Passenger Capacity

Front Head Room

1,093 mm

Front Leg Room

1,131 mm

Front Shoulder Room

1,677 mm

Rear Head Room

1,019 mm

Rear Leg Room

1,102 mm

Rear Shoulder Room

1,659 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,369 mm

Length, Overall

6,776 mm

Width, Max w/o mirrors

2,079 - 2,454 mm

Height, Overall

2,040 - 2,053 mm

Min Ground Clearance

N/A

Base Curb Weight

N/A

Front Tire Size

LT275/65R20 LT275/70R18

Rear Tire Size

LT275/65R20 LT275/70R18

Sun/Moon Roof

Included

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Not Available

Wheels-Locks

Not Available

19 of 20

4WD Crew Cab 172" Denali

$N/A MSRP

Gasoline, Diesel

Four-Wheel Drive

401 - 470 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Turbocharged Diesel V8 Gas V8

Displacement

6.6L/- TBD -

Fuel System

Direct Injection

Horsepower

470 hp @ 2800 rpm 401 hp @ 5200 rpm

Torque

975 ft-lb @ 1600 rpm 464 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,257 - 9,072 kg

Wt Distributing Hitch - Max Tongue Wt.

726 - 907 kg

Fifth Wheel Hitch - Max Trailer Wt.

7,938 - 13,971 kg

Fifth Wheel Hitch - Max Tongue Wt.

1,984 - 3,493 kg

Maximum Trailering Capacity

9,072 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Transmission, 10-Speed automatic Cooling, auxiliary external transmission oil cooler

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Included

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Not Available

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Included

Heads-Up Display

Included

Lighting

Daytime Running Lights

Included

Automatic Headlights

Not Available

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Included

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Included

Cooled Front Seat(s)

Included

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Included

Seat-Massage

Not Available

Heated Steering Wheel

Included

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Included

Seat Memory

Included

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Included

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Included

Universal Garage Door Opener

Included

Running Boards/Side Steps

Included

Power Retractable Running Boards

Included

Interior

Passenger Capacity

Front Head Room

1,093 mm

Front Leg Room

1,131 mm

Front Shoulder Room

1,677 mm

Rear Head Room

1,019 mm

Rear Leg Room

1,102 mm

Rear Shoulder Room

1,659 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,369 mm

Length, Overall

6,776 mm

Width, Max w/o mirrors

2,079 - 2,454 mm

Height, Overall

2,033 - 2,049 mm

Min Ground Clearance

N/A

Base Curb Weight

N/A

Front Tire Size

LT275/65R20

Rear Tire Size

LT275/65R20

Sun/Moon Roof

Included

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Not Available

Wheels-Locks

Not Available

20 of 20

4WD Crew Cab 172" Denali Ultimate

$N/A MSRP

Diesel

Four-Wheel Drive

470 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Turbocharged Diesel V8

Displacement

6.6L/- TBD -

Fuel System

Direct Injection

Horsepower

470 hp @ 2800 rpm

Torque

975 ft-lb @ 1600 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

9,072 kg

Wt Distributing Hitch - Max Tongue Wt.

907 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,525 - 13,925 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,381 - 3,481 kg

Maximum Trailering Capacity

9,072 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Transmission, 10-speed automatic Cooling, auxiliary external transmission oil cooler

Fuel

Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Included

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Not Available

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Included

Heads-Up Display

Included

Lighting

Daytime Running Lights

Included

Automatic Headlights

Not Available

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Included

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Included

Cooled Front Seat(s)

Included

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Included

Seat-Massage

Included

Heated Steering Wheel

Included

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Included

Seat Memory

Included

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Included

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Included

Universal Garage Door Opener

Included

Running Boards/Side Steps

Included

Power Retractable Running Boards

Included

Interior

Passenger Capacity

Front Head Room

1,093 mm

Front Leg Room

1,131 mm

Front Shoulder Room

1,677 mm

Rear Head Room

1,019 mm

Rear Leg Room

1,102 mm

Rear Shoulder Room

1,659 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,369 mm

Length, Overall

6,776 mm

Width, Max w/o mirrors

2,079 - 2,454 mm

Height, Overall

2,040 - 2,053 mm

Min Ground Clearance

N/A

Base Curb Weight

N/A

Front Tire Size

LT275/65R20 LT275/70R18

Rear Tire Size

LT275/65R20 LT275/70R18

Sun/Moon Roof

Included

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Not Available

Wheels-Locks

Not Available

2026 GMC Sierra 3500HD

Key Specifications for 2026 GMC Sierra 3500HD

Review & Compare:
2026 GMC Sierra 3500HD Trims

Photos

AutoTrader Review

Reviews and News

Recall Information

2026 GMC Sierra 3500HD for Sale

Similar Vehicles

2026 GMC Sierra 3500HD

Key Specifications for 2026 GMC Sierra 3500HD

Review & Compare: 2026 GMC Sierra 3500HD Trims

Photos

AutoTrader Review

Reviews and News

Recall Information

2026 GMC Sierra 3500HD for Sale

Similar Vehicles

Review & Compare:
2026 GMC Sierra 3500HD Trims
